Diode Zener Tester

Circuit Diagram

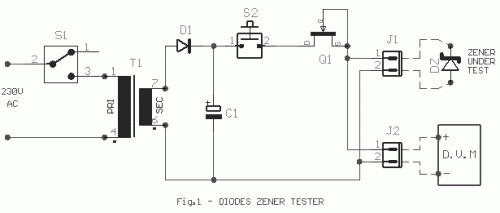

Diode Zener Tester Circuit Diagram

Many times we have found itself in the necessity to use a Zener diode and cannot to know the voltage of operation. Many times we cannot read the characteristics or the type that is written on her. In this case, but in different we can also use the circuit of Fig.1. The T1, D1 and C1 they constitute a system of half-wave rectification. If push the switch S2 a DC current passes in from current limiter Q1 and the diode Zener DZ which we check. Q1 stabilizes the current in the price of 10mA independent from the zener voltage that we have connected in the connector J1. In the connector J2 we connect a digital voltmeter. There we see the voltage in the zener DZ. The circuit is reliable for measurements down to 25Volts. You have clue of low voltage 0.8Volts likely the diode DZ, is connected reverse. Change the polarity of diode DZ.

Parts

Diode Zener Tester parts 1
Diode Zener Tester parts 2
Diode Zener Tester parts 3
author: Sam Electronic Circuits 7/05
circuit from http://users.otenet.gr/~athsam/Diode_zener_tester.htm
